Insulation / Non Ferrous Metal CNC Router Engraving Machine with XYZ Axis Protective Cover

CNCSUPER S5DS is a "Bridge-Type" Metal CNC Router. It is more powerful than a wood router but more affordable than a full VMC (Vertical Machining Center). By using a manual 5.5KW mold spindle, you get the high torque needed for metal at a much lower price point than an Automatic Tool Changer (ATC) system.

Industrial Frame Rigidity: A heavy-duty, stress-relieved steel bridge structure that minimizes vibration, allowing for the "Mirror Finish" cutting quality required in professional fabrication.

Full-Axis Protection: Robust XYZ protective bellows (covers) shield the guide rails and drive components from abrasive insulation dust and metallic swarf, significantly extending the machine’s service life.

Precision Drive System: Equipped with XY Grinding Racks for high-speed transmission and a Z-axis Ball Screw for zero-backlash vertical precision, ideal for complex 3D mold engraving.

5KW High-Torque Mold Spindle: A water-cooled, constant-torque spindle specifically engineered for the resistance of non-ferrous metals, ensuring stable RPM and a high-quality surface finish.

Integrated Cooling System: A stainless steel water trough combined with a high-volume circulation pump provides essential flood cooling to prevent "chip welding" and tool overheating during metal processing.

Our professional Metal CNC Router offers significantly higher durability and precision for non-ferrous metalwork than a standard wood-focused router. The following comparison highlights why your specific configuration is the superior choice for aluminum and insulation materials.

It is specially designed for high-precision processing of aluminum materials and various industrial insulation materials. It is widely applied in multiple professional fields, including:

• Architectural curtain wall decoration and aluminum veneer special-shaped processing

• Aluminum profile cutting and structural component manufacturing

• Aluminum and copper door & window hollow carving and finishing

• Rail transit floor panels and interior structural parts processing

• Automotive, aerospace and heavy machinery precision parts processing

• Electrical and electronic equipment insulation components manufacturing

• All-aluminum cabinet, all-aluminum furniture and profile furniture production

• Advertising signs, metal nameplates, art crafts and gift engraving

• Industrial molds, jigs, fixtures and special-shaped plate processing

• Industrial special-shaped blanking, panel processing and structural modification

MATERIAL

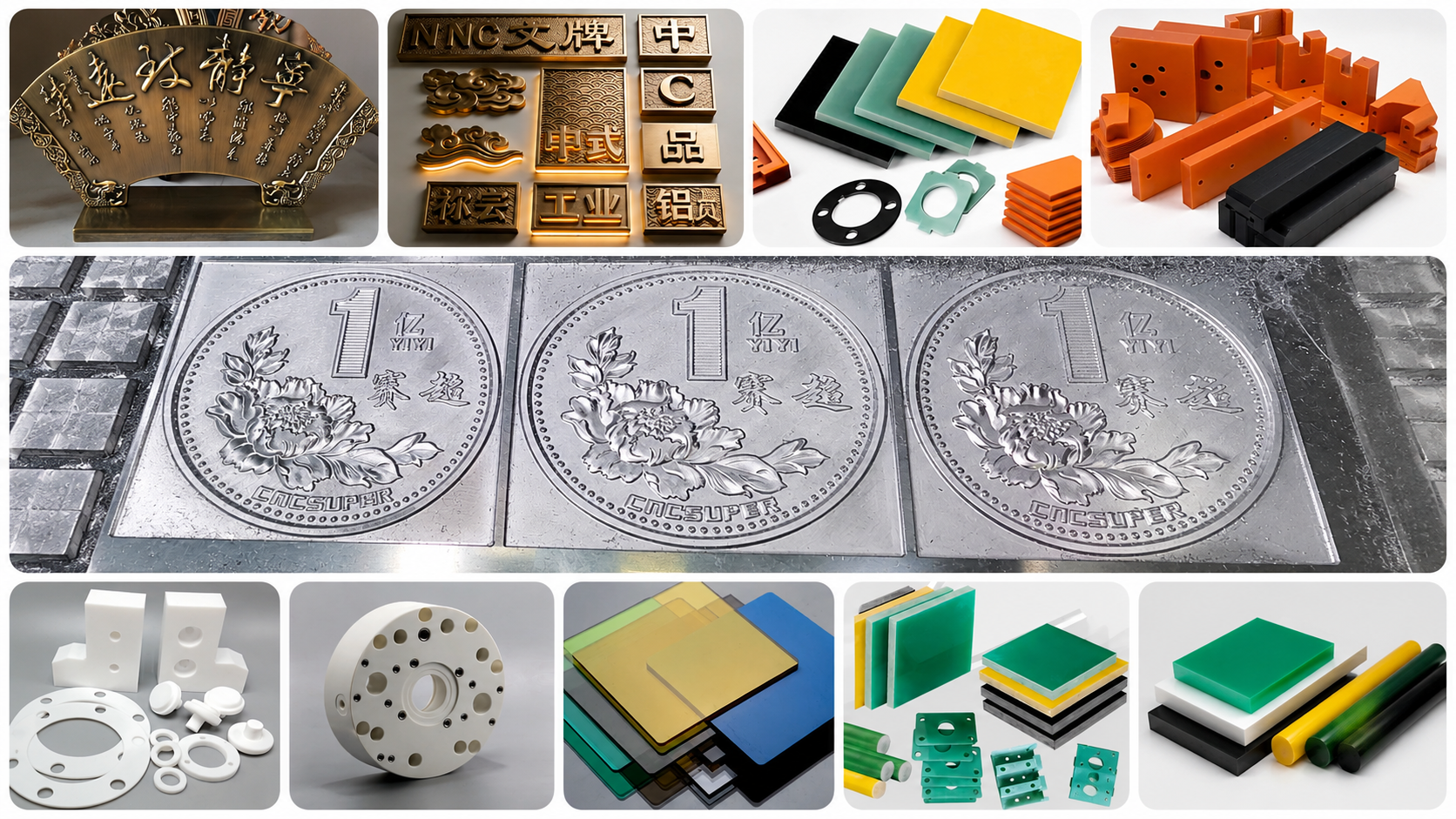

The equipment is capable of efficiently processing a wide range of metal and non-metal materials, especially suitable for aluminum series and insulation materials. The main processable materials include:

• Aluminum series: aluminum veneers, aluminum curtain wall panels, aluminum profiles, fluorocarbon-coated aluminum plates, aluminum composite panels, copper and copper alloys

• Insulation materials: bakelite, epoxy boards, FR4 fiberglass boards, engineering plastic rigid plates, acrylic sheets, and other synthetic hard materials

• Other applicable metals: various composite metals and non-ferrous metals for industrial processing

PRPCESSING TECHNIQUE

Equipped with powerful multi-functional processing capabilities, the machine supports the following technical processes in one unit:

• Special-shaped blanking and contour cutting for plates and profiles

• Hollow carving and through-hole processing of complex structures

• 3D relief engraving and surface texture processing

• Slotting, chamfering and edge trimming

• Plane milling, smooth surfacing and precision finishing

• Drilling, positioning hole making and structural hole processing

• Multi-layer material composite processing and multi-angle milling
